A bit easier build before the AI stuff 😅. Scout EDF by Kyle Germanton. This was fun to build. Simple design and easily available parts. #maker #edf #uav #ardupilot #3DPrinting

Damn those cheap servos. Glad one broke on the test bench. Would definitely crashed the whole plane. Why the reliable ones are so damn expensive?.

Finally some time to do continue building my hobby uav projects. Received tf luna range sensor and air speed sensor. Installing these to the Scout EDF to get fully automatic functionalities. E.g. automatic takeoff and landing (probably crashes).

Experimenting with 3D printed din-rails for mounting hardware inside UAV fuselage. Very nice and clever system, however maybe not the best option for fixed wings. Adds weight and not necessarily the most vibration resistant. #3DPrinting #UAV #FixedWing

Thinking of trying to get the Grounding DINO model up and running and see how that would perform and work by sending small prompt e.g. “search person in a red jacket” via mavlink telemetry statustext.

I did manage to get the VILA1.5-3b model working and to describe the video stream realtime, which was cool, but not quite what I’m targeting for.

Couldn’t get the gemma 3n e2b model working. Ended up with different errors that I tackled one by one, but eventually had to call it for the day.

Streaming real-time mavlink telemetry (elrs backpack) from ground to Grafana Cloud. All running on a Android tablet (Termux + Telegraf + QGroundControl) #observability #grafana

Bi-Directional Natural Language Interface for UAV via MavLink Telemetry. Could it work? It would open up some cool applications. Especially when Gemma 3n would provide multimodal intelligence #overengineering #mavlink #NVIDIA #gemma3n

I need more hours in a day. Learning Nvidia robotics tools and libraries is very rewarding. Next task is to build the realtime vision properly using deepstream + ROS2 + Yolo (or Unidrone).

Well. It's not quite SAR mission ready yet, but it does work. Running Unidrone 1.0 (from @StephanSturges) on Jetson Orin Nano Super 8 Gb. #AI #EdgeAI #UAVs

This thing is so cool. To see the telemetry popup automatically on a dashboard when you power up the plane. Everything persisted in the cloud real time and can be analyzed later. Next level observability and definitely over engineered hobby project 😅.

Finally had the time to properly configure the nvidia jetson orin nano. Installed an nvme ssd and did the recommended optimizations. So it should be now ready for some fixed wing related AI applications.

PoC for streaming UAV telemetry from ground to Grafana Cloud

Also had to model and print small filler to get the case glued firmly to the mount.

For the tablet:

Mount:

Telegraf in Termux was pain to setup. Even #chatgpt o3 wasn’t helpful and eventually started hallucinating. What actually resolved the issue was an old #stackoverflow post that I found using google. Lol.

Telegraf running in Termux (on android tablet) and pushing telemetry to Grafana Cloud. From previous offline ground station solution to online using LTE via phone hotspot.

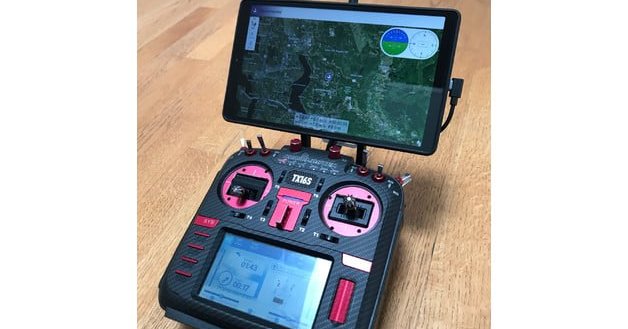

Portable budget ground control station for my fixed wings 👍 Samsung A9 tablet from sale, 3D printed case and holder, some ca glue, m4 bolts and zip tie. Perfect! #tx16s #qgroundcontrol
