@john_newall
John Newall
19 hours

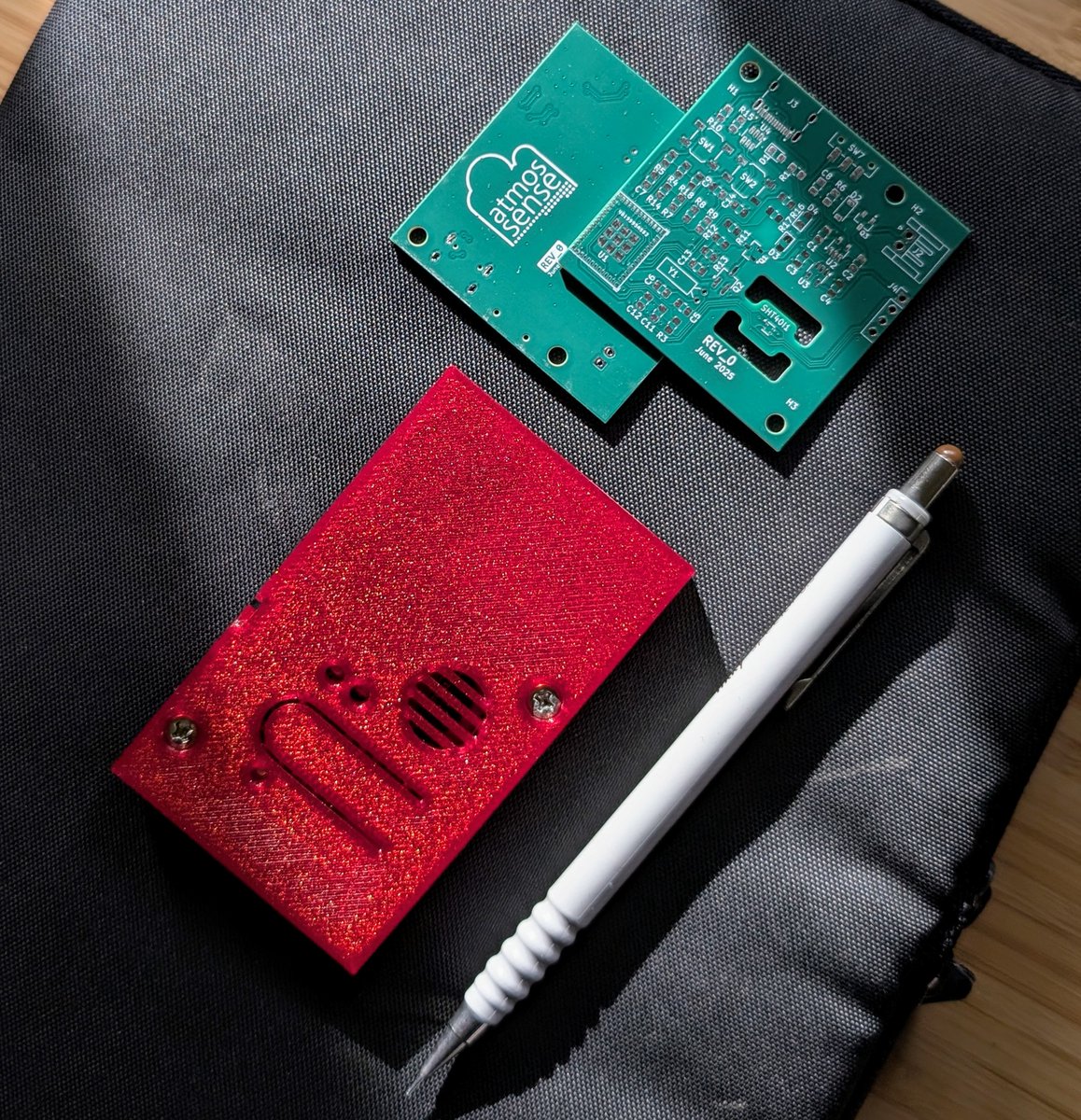

This prototype cycle for my temperature and humidity tracker is almost complete with a new 50% slimmer case. It's been quite a journey #electronics #kicad #esp32 #micropython #blender #3dprinting
Tweet media one
2
3
13
@john_newall
John Newall

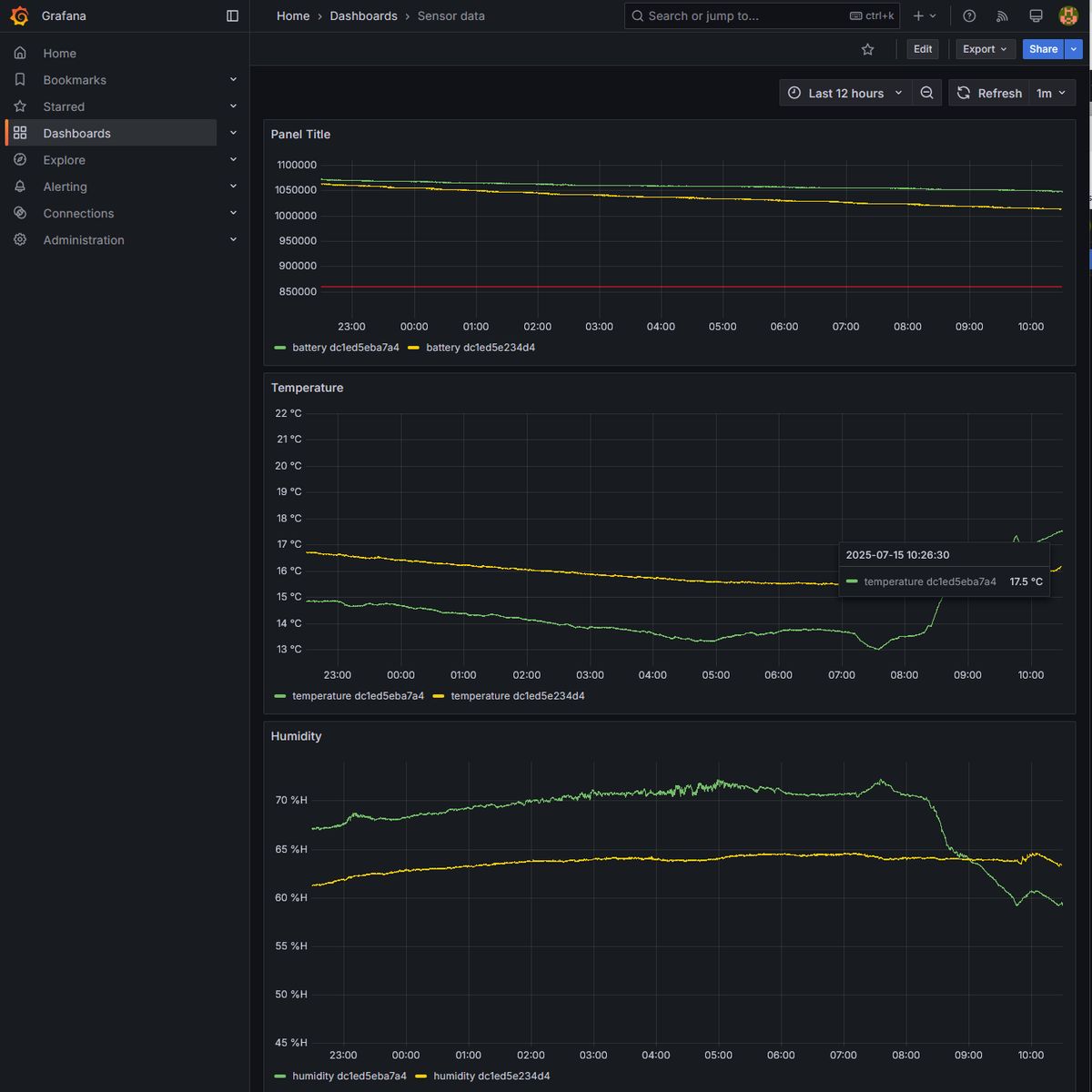

10 days
More tests: x2 devices reporting overnight. One on my desk and the other by a window that gets morning sun. Graphs made in #Grafana. Devices are ESP32C3, Sensirion sensors and running #Micropython. Testing a smaller battery, hence diverging battery readings. #electronics #ESP32
Tweet media one
0
0
4
@john_newall
John Newall
17 days
@PaulStoffregen's enquiry on a previous post motivated me to take a *real* macro photo this time around. The solder paste photo is an image stack shot through 100mm macro lens.
1
0
1
@john_newall
John Newall
17 days

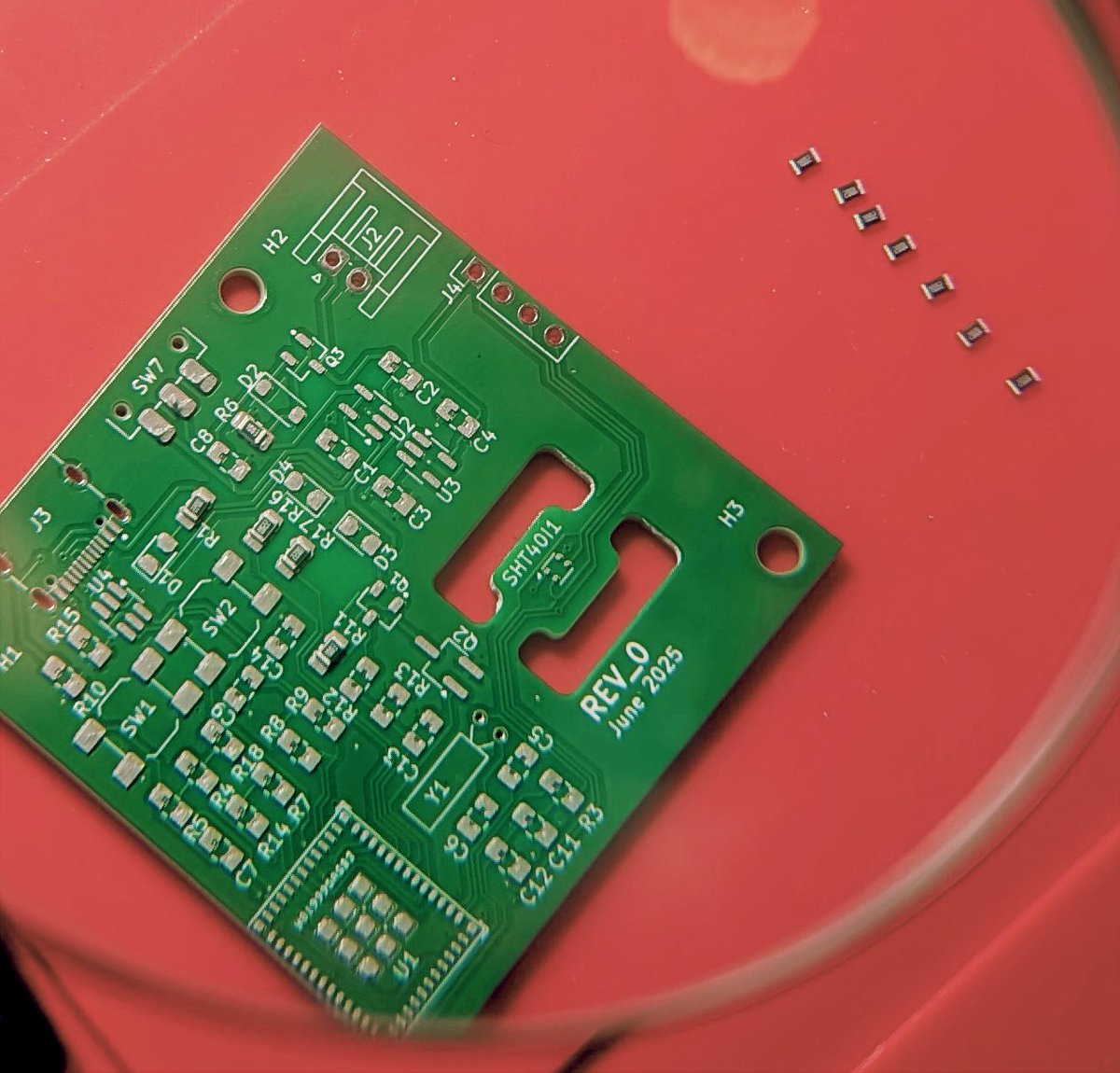

2nd custom sensor board created and working 🎉.1) macro shot of solder paste .2) parts placement in progress.3) finished and functioning.#electronics #esp32 #micropython #kicad
Tweet media one
Tweet media two
Tweet media three
1
0
11
@john_newall
John Newall
18 days
Temperature and humidity sensor dev continues on the software front. Sleeping the hardware for 4s between reads yields ~34.5 hour life with a 1100mAh battery. Going to try caching data on the device and connecting/sending across the network less often next. #esp32 #micropython.
0
0
1
@john_newall
John Newall
19 days
RT @Jordan_W_Taylor: In April on a mountain in Chile the Vera Rubin observatory gathered first light, and this telescope will be world-chan….
0
143
0
@john_newall
John Newall
24 days

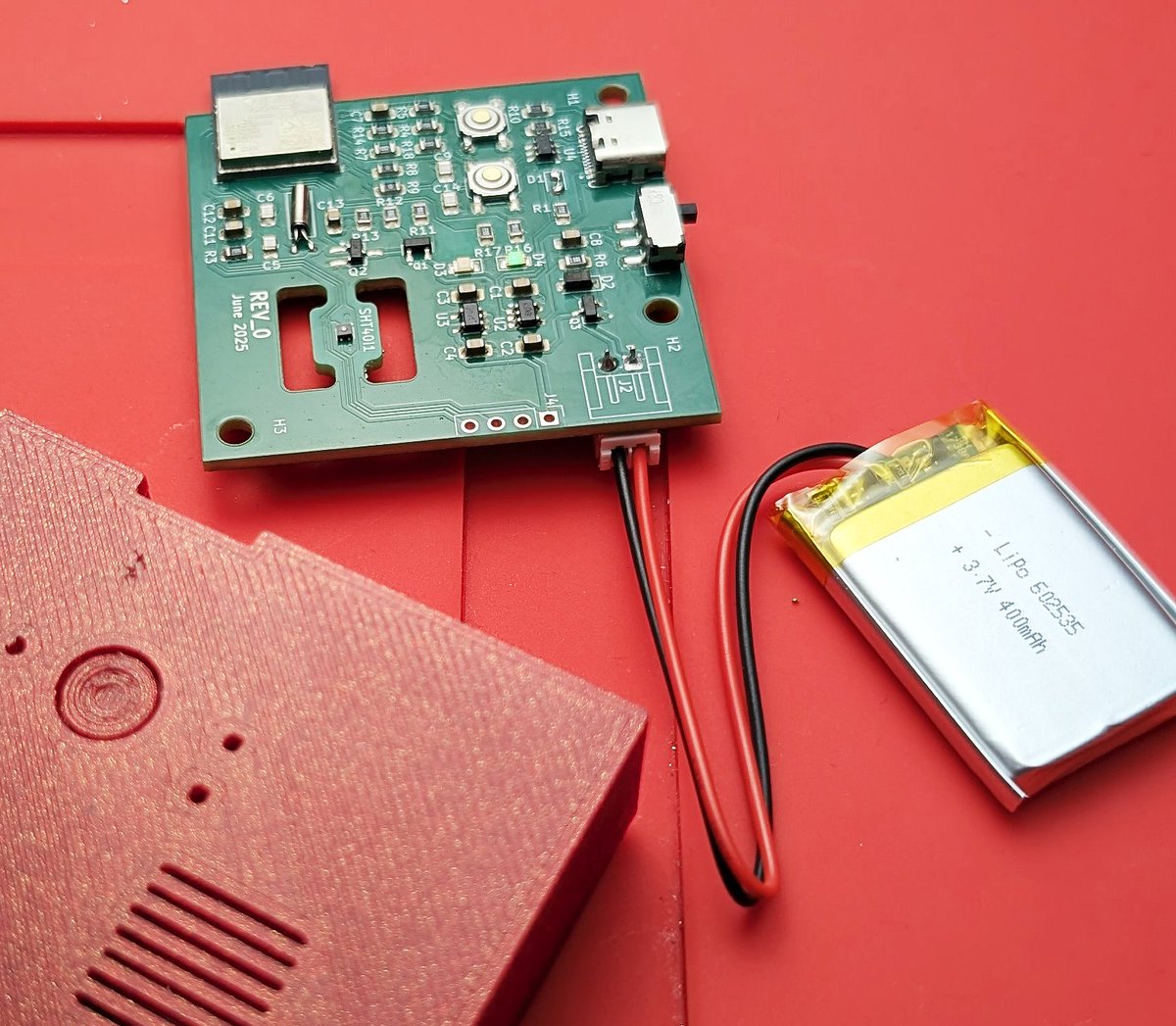

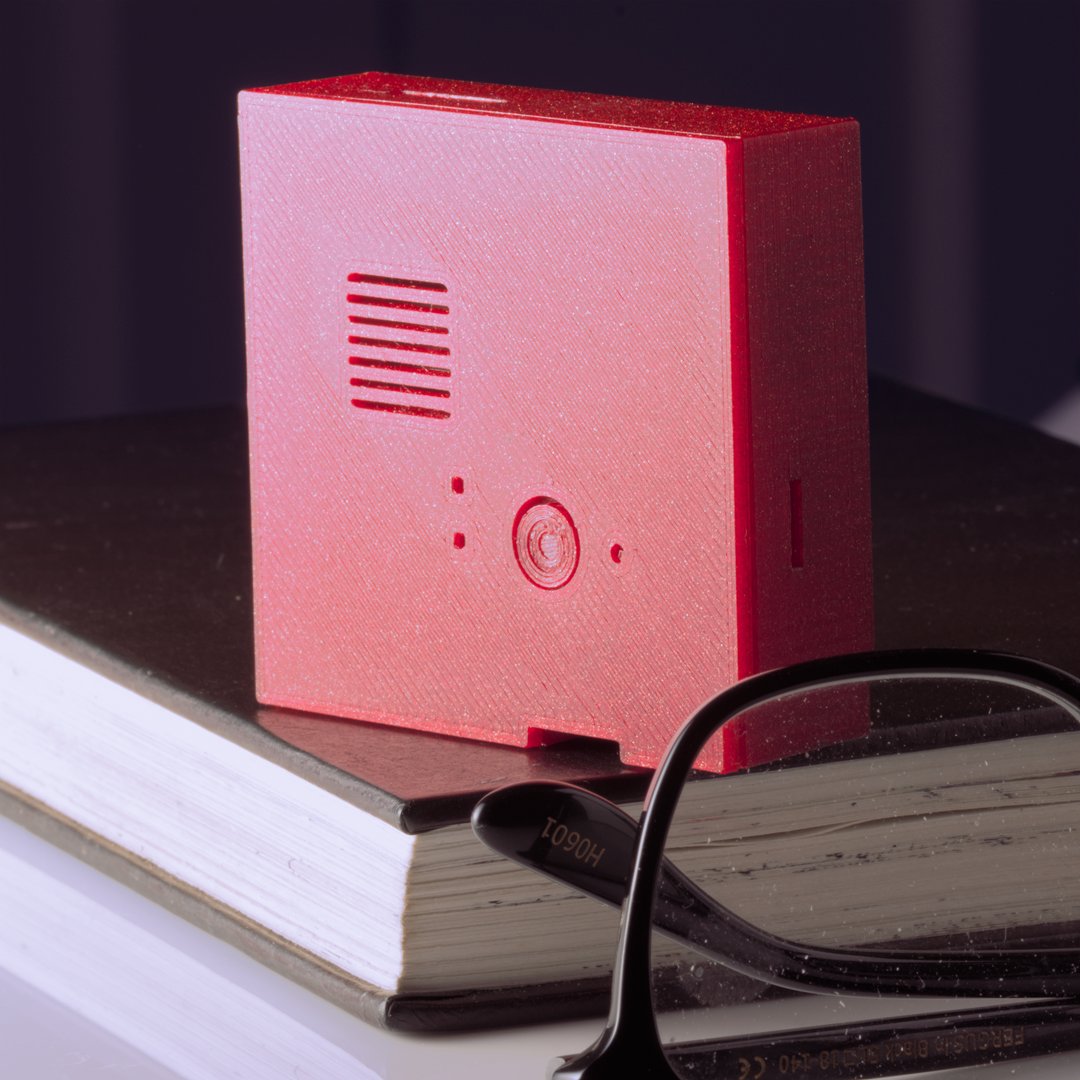

Made a little case for my custom temperature/humidity sensor board. Feels like a really real prototype now ☺️. #3dprint #blender #electronics #esp32 #micropython
Tweet media one
1
0
15
@john_newall
John Newall
28 days

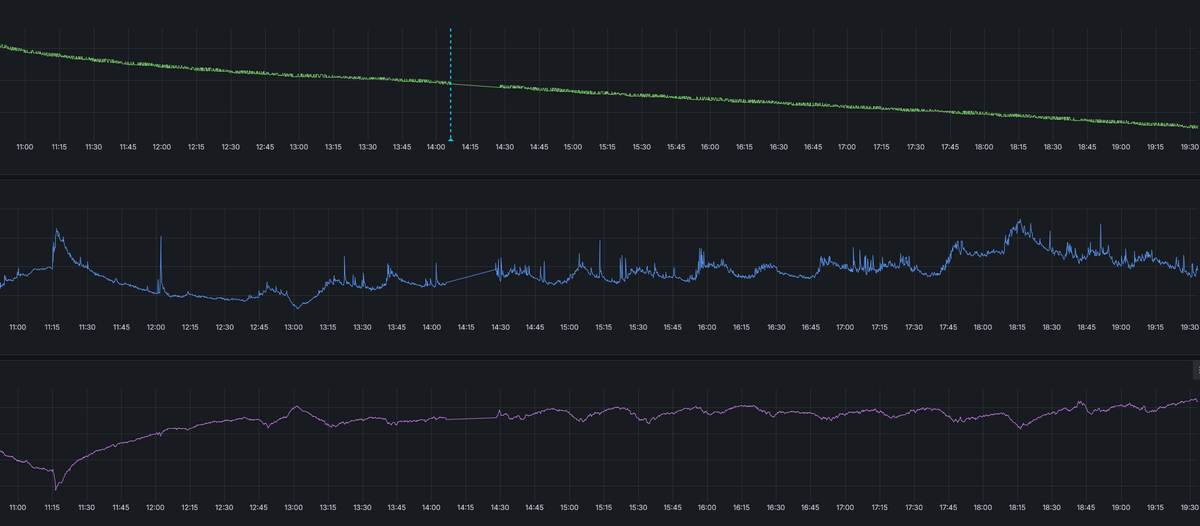

Several hours and over 3200 data points of logging later. * Device crashed once. Probably failed sending(?), I have no error catching in the code. * 1100mAh battery look like it'll last about 18hours.* I can tell when the heater cycles on/off (It's winter here)
Tweet media one
0
0
1
@john_newall
John Newall
29 days

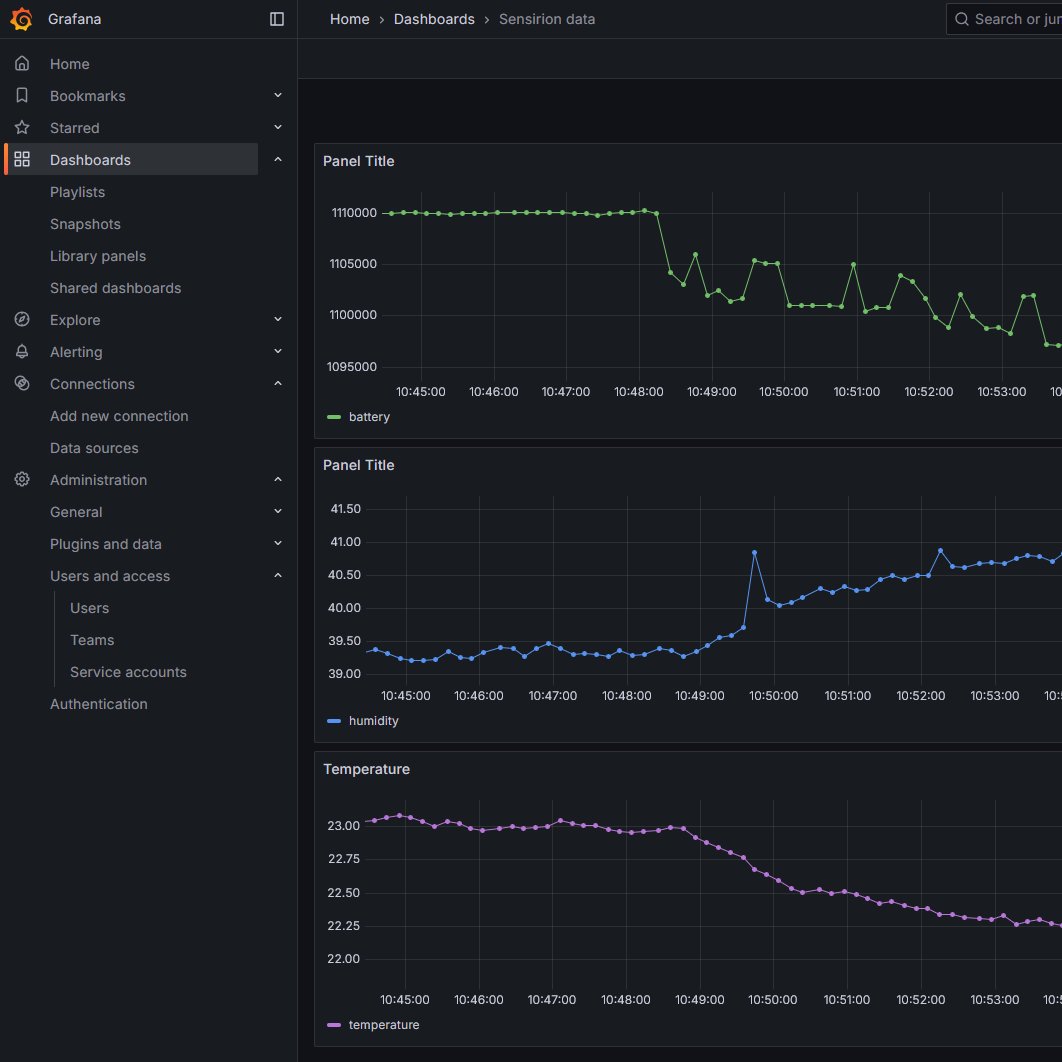

Social media loves graphs right?.Logging humidity, temperature and battery voltage with my custom ESP32 board is working nicely. Guess where in the graph I switched from USB to battery power. #esp32 #electronics #grafana #micropython
Tweet media one
2
0
6
@john_newall
John Newall
1 month

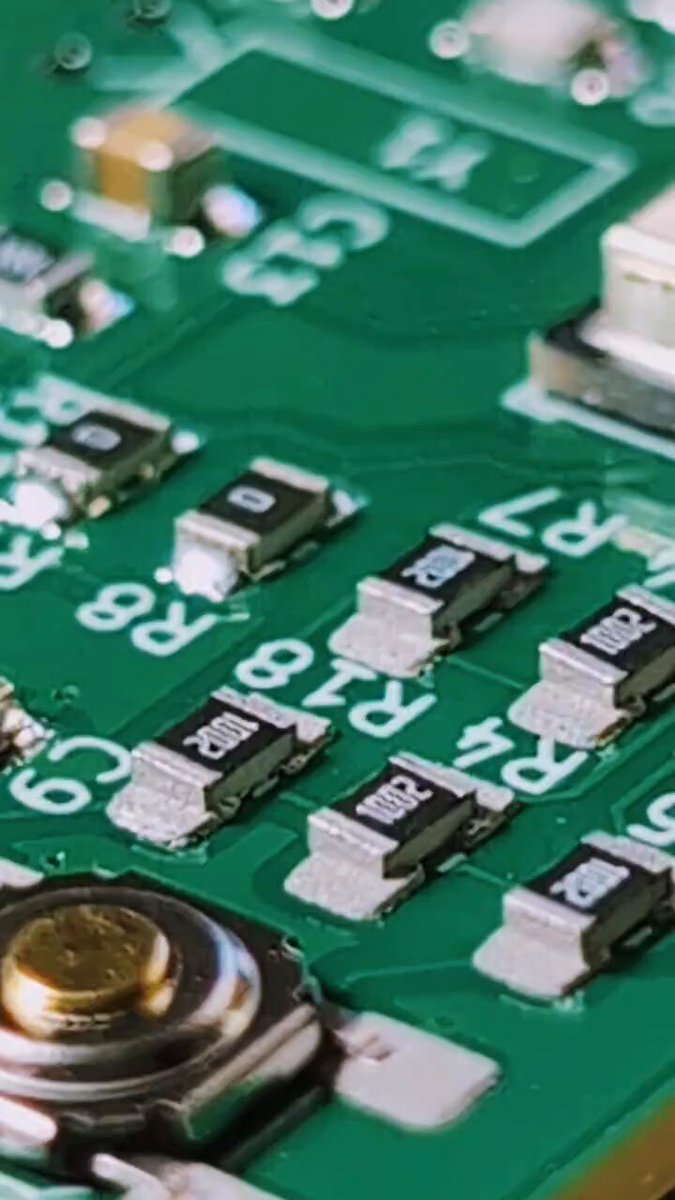

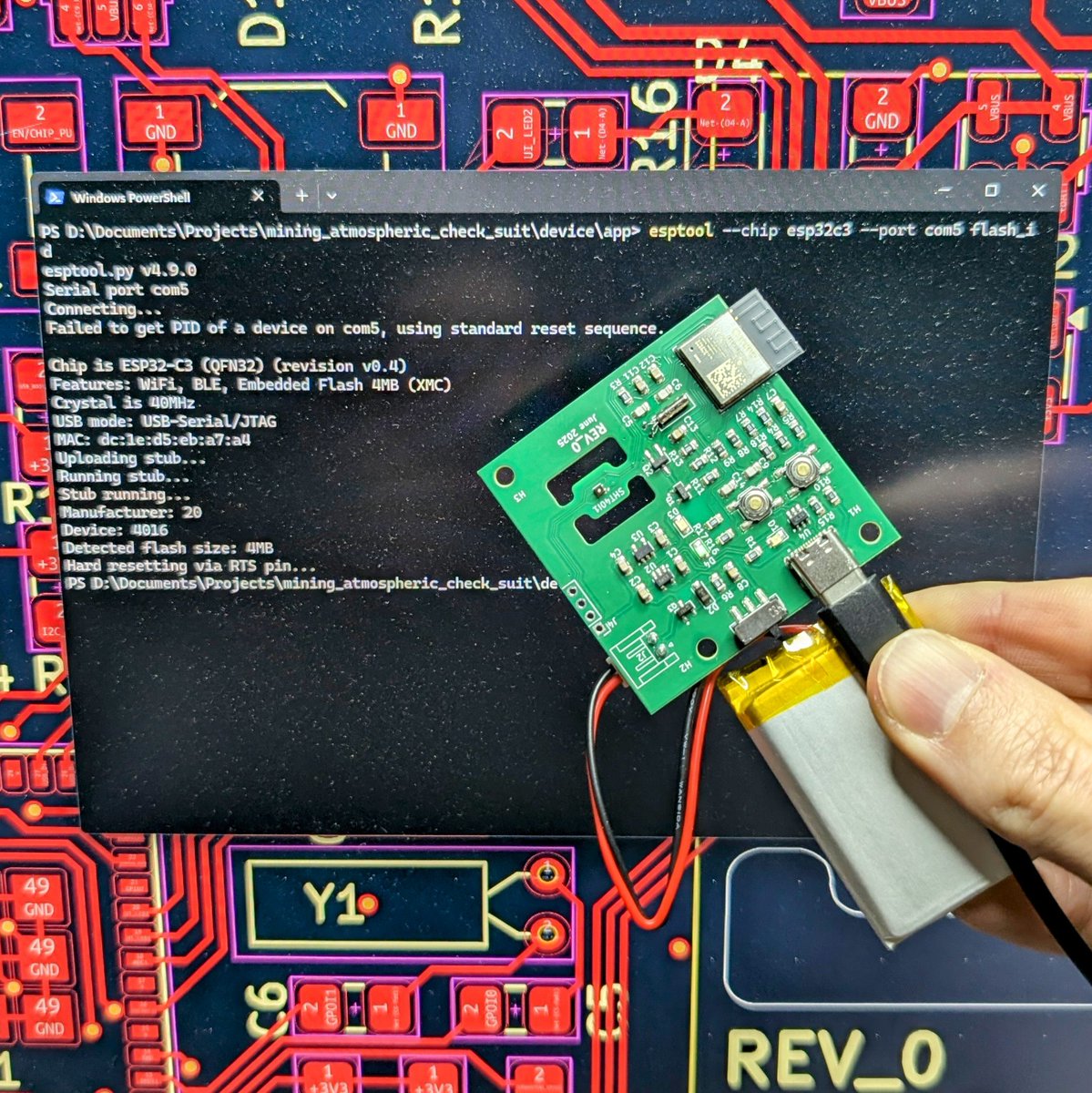

It's a miracle. My custom esp32 board is working. #micropython installed and now playing with various features. #esp32 #electronics
Tweet media one
16
19
321
@john_newall
John Newall
1 month

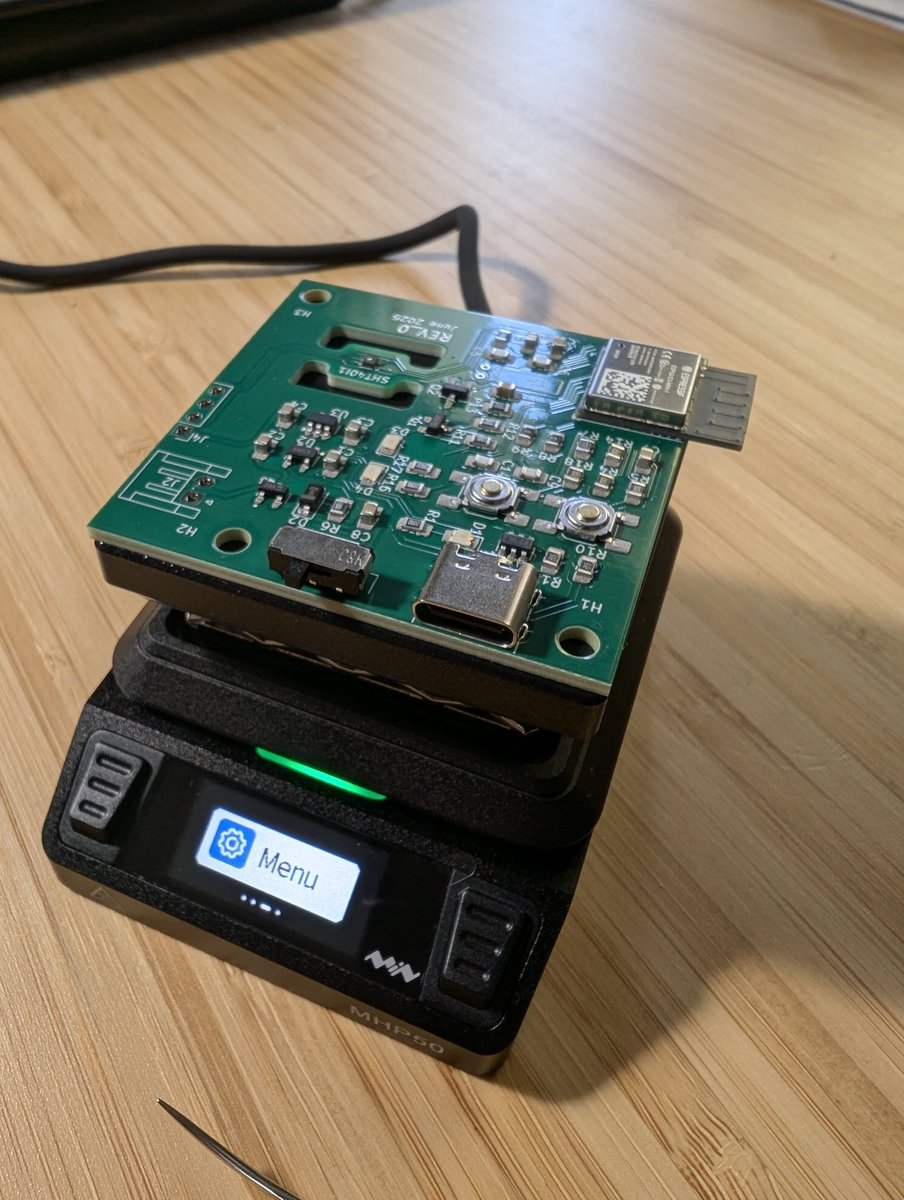

Paste applied and reflow underway. #electronics #esp32
Tweet media one
Tweet media two
Tweet media three
10
9
127
@john_newall
John Newall
1 month

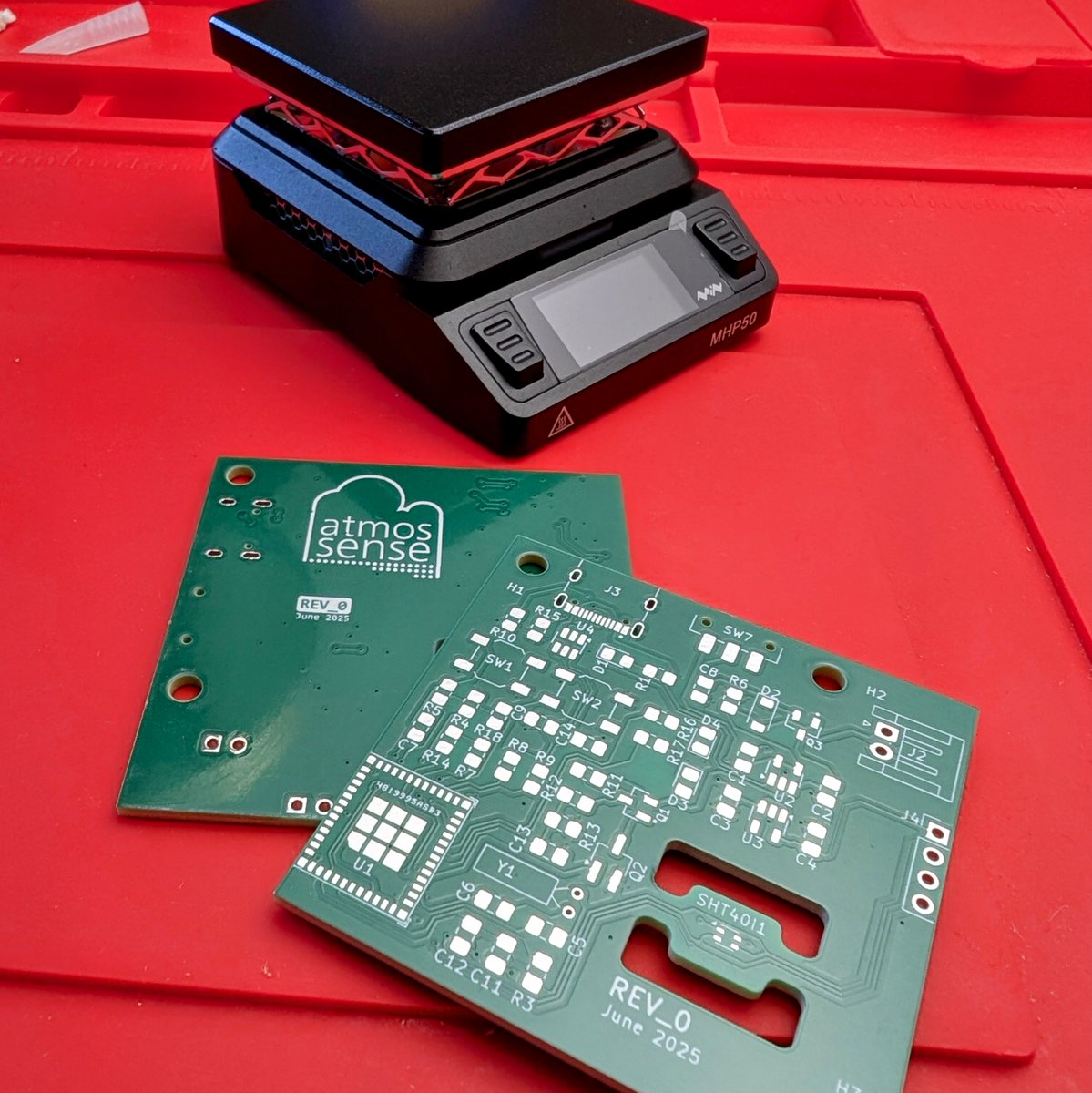

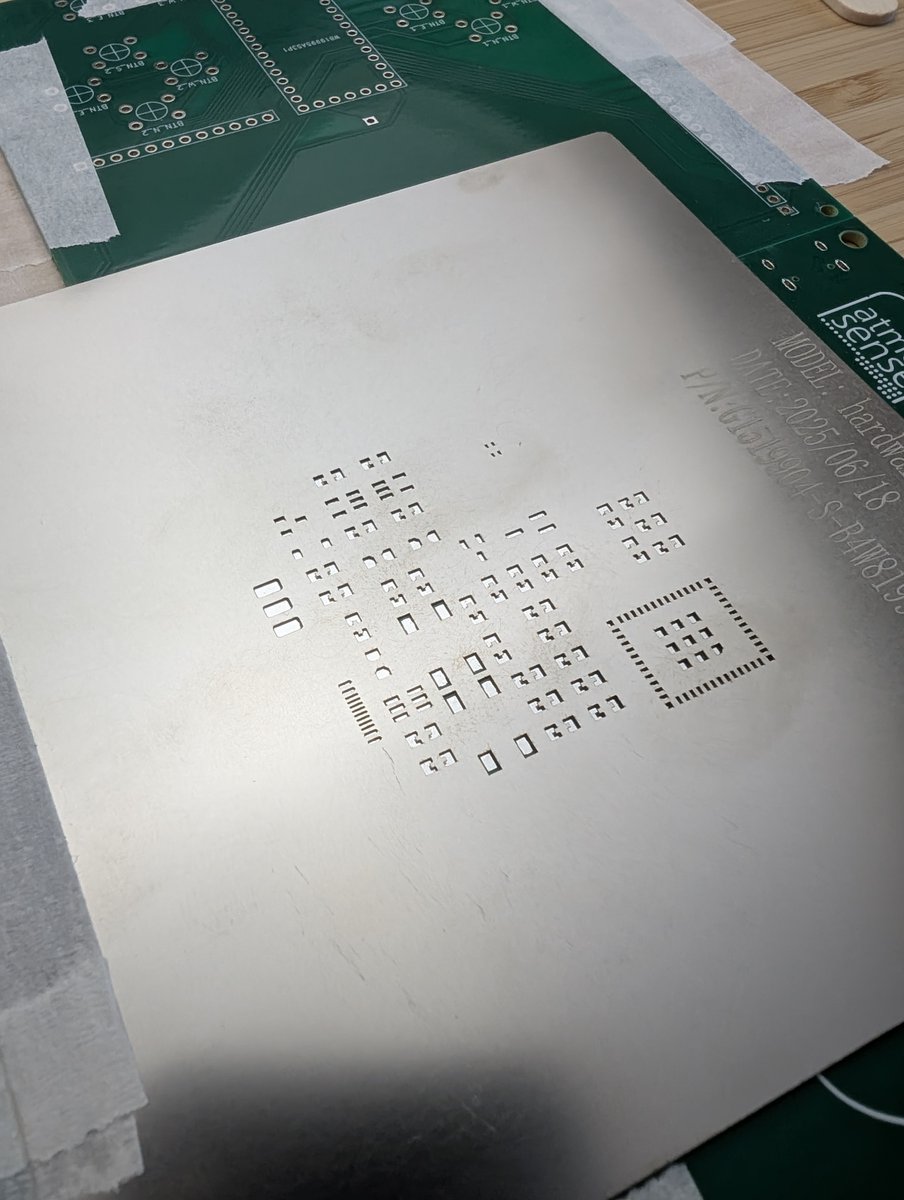

From pictures on a screen to real PCBs a few days later. I'm all setup to try some new assembly techniques. Stencil paste application and reflow on a cute hot-plate. Feels like it should be easy. That's usually a sure sign I have no idea what I'm doing! #electronics #esp32
Tweet media one
Tweet media two
2
0
10
@john_newall
John Newall
1 month
Oversights rolling in. Wrong mosfet footprints. Fell for that trap last time. Just assumed pinout of sot23 mosfets would match KiCad's generic footprint. Of all the people on earth that wouldn't think to check the pinout. <audibly rolls eyes at self>.
2
0
17
@john_newall
John Newall
1 month

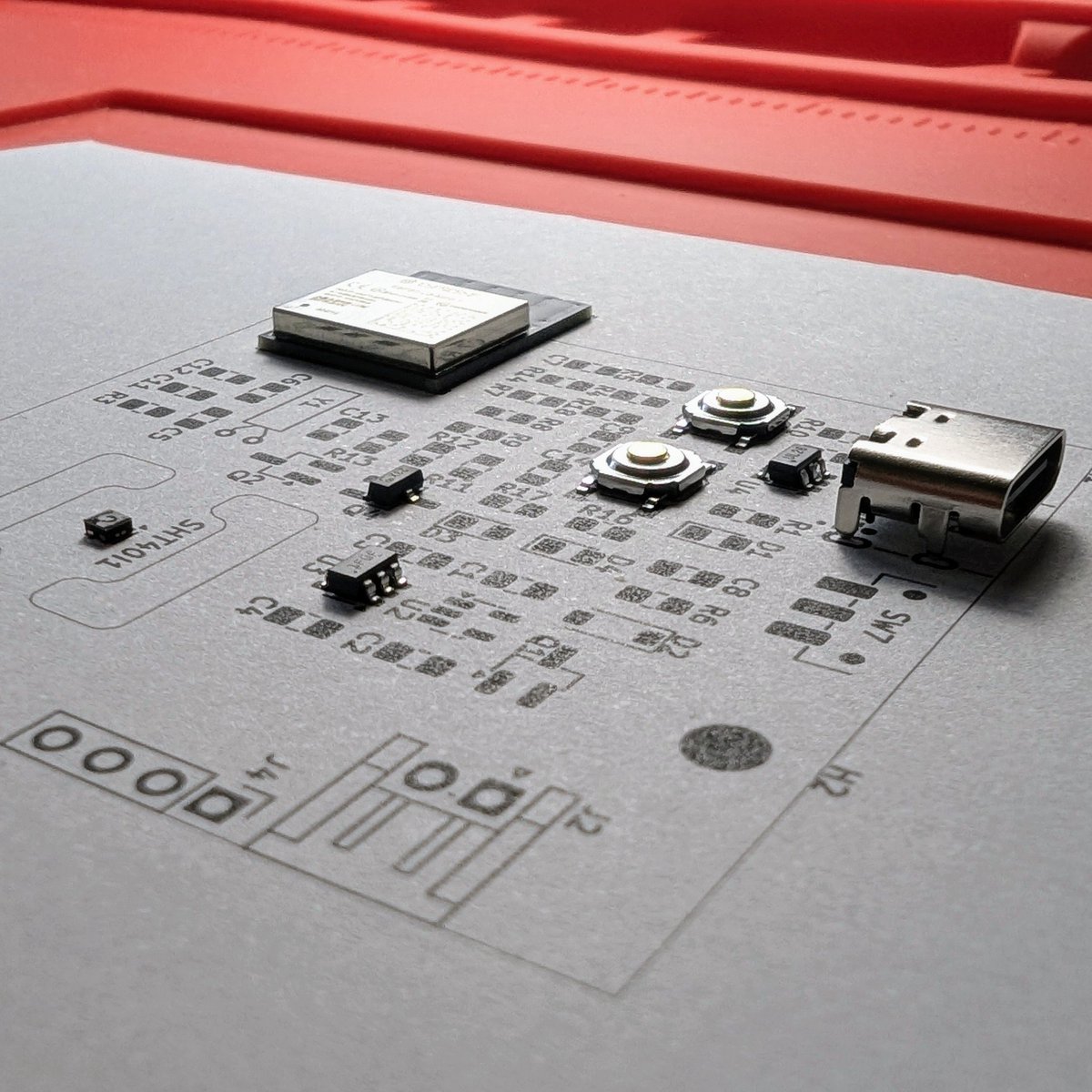

Learning from previous mistakes and making sure parts fit before PCB production. #esp32 #electronics
Tweet media one
25
28
508
@john_newall
John Newall
2 months
I'm really just setting the ground work for posting a video of me screaming "WHAT IS YOUR MAJOR MALFUNCTION" at a PCB.#FullMetalJacket.
0
0
3
@john_newall
John Newall
2 months
"This is my schematic. There are many like it but this one's mine. My schematic is my best friend. It is my life. I must master it as a must master my life.".Entertaining the idea of making a project board with an ESP32_C3 module. #esp32 #electronics
Tweet media one
2
0
15
@john_newall
John Newall
2 months
RT @matt_trentini: The May Melbourne MicroPython Meetup is on this Wednesday, the 28th May!. We'll have a bumper news roundup since we didn….
0
5
0
@john_newall
John Newall
2 months

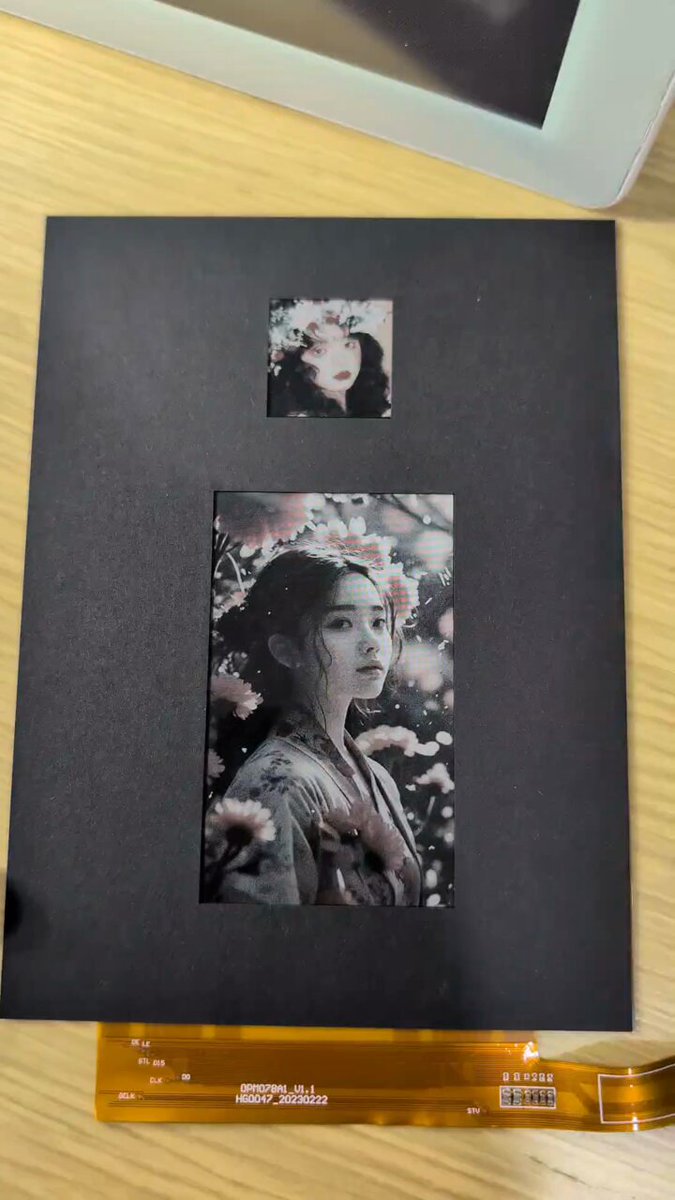

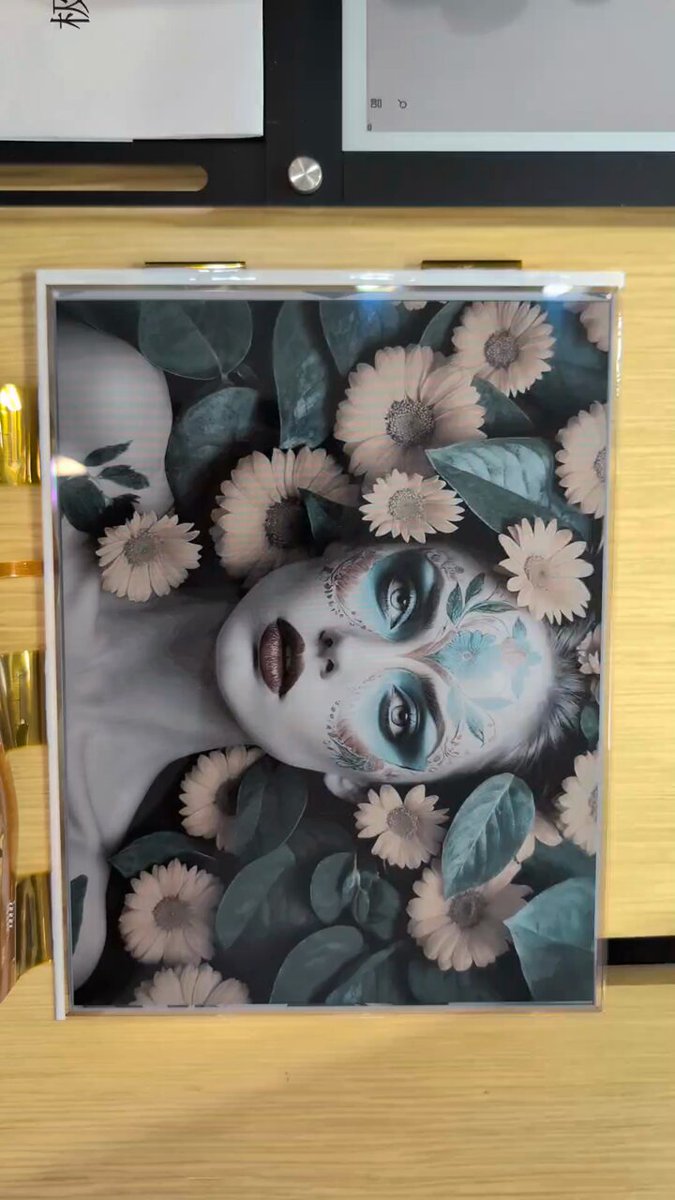

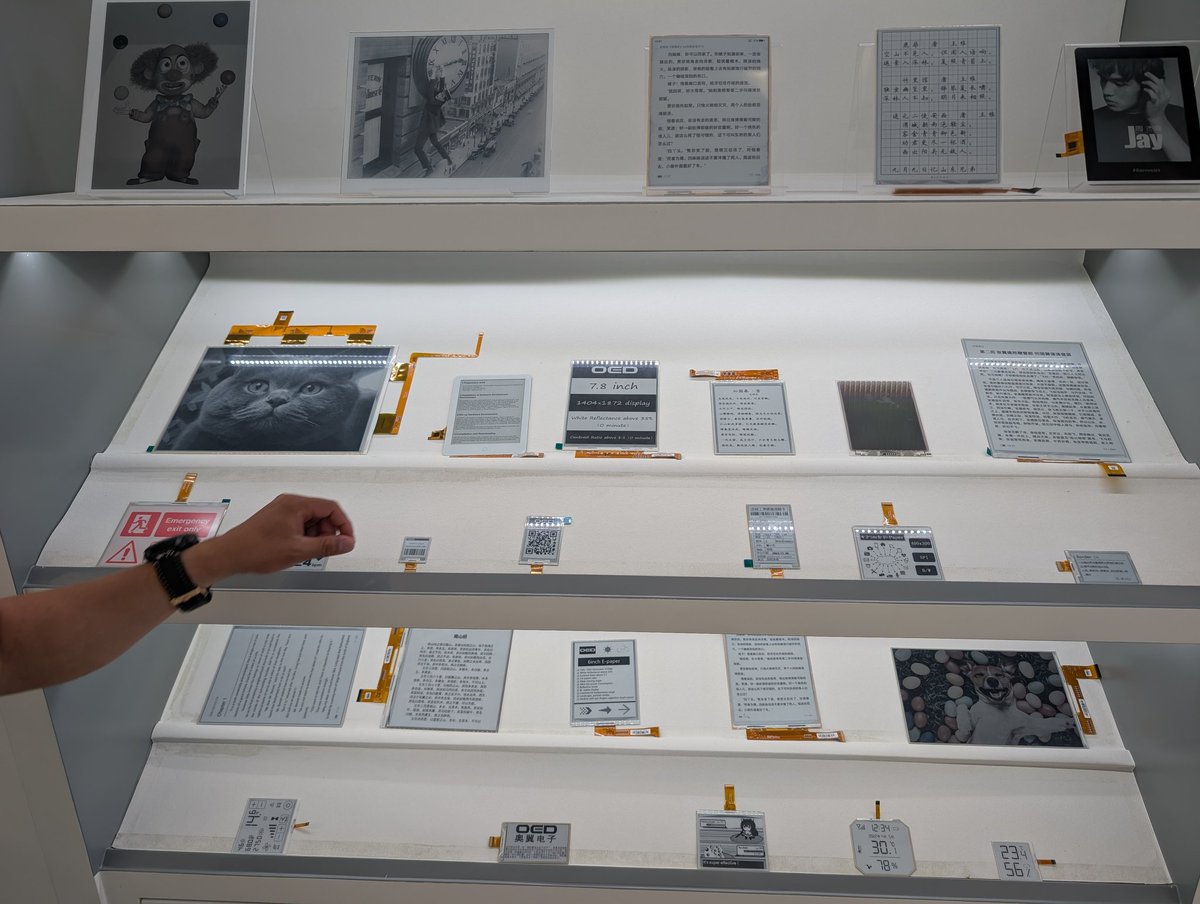

RT @ericmigi: Visited an e-paper factory today
Tweet media one
Tweet media two
Tweet media three
0
2
0
@john_newall
John Newall
3 months

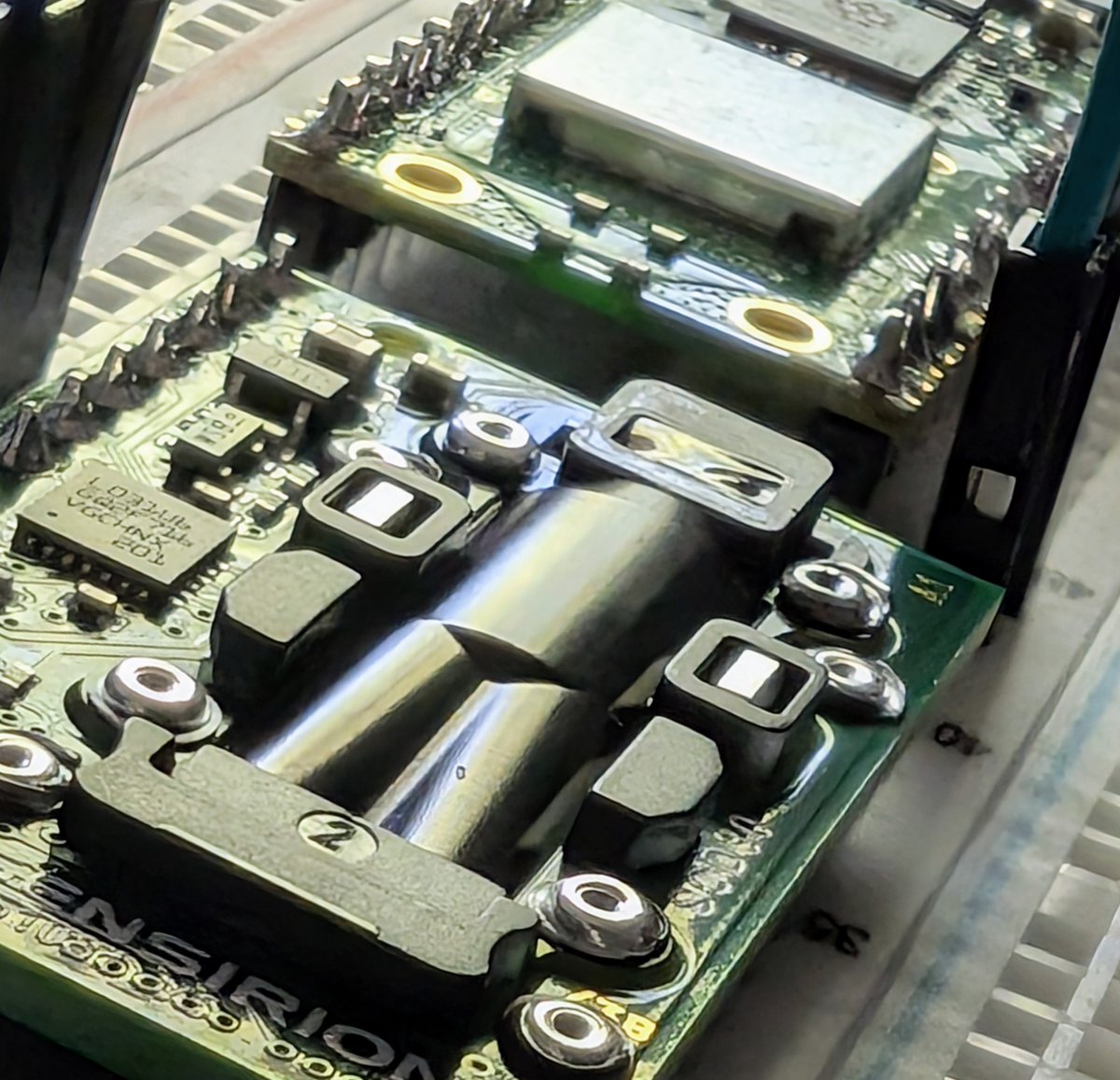

Testing this neat little #Sensirion SCD30 CO2 sensor on a breadboard at the moment. First thoughts: I live in an atmospheric cesspit! In the background is a #Pico2. Made fast progress with the help of #MicroPython.#electronics
Tweet media one
0
0
3
@john_newall
John Newall
4 months
Got a few orders delivered before the TradeWarz™ game gets outta hand. #electronics
Tweet media one
0
0
3
