CPU collector and enthusiast. Microscopy of vintage microelectronics, x86 and more. Please visit also my Instagram, TikTok, and YouTube channel for more…
It’s a
#wrap

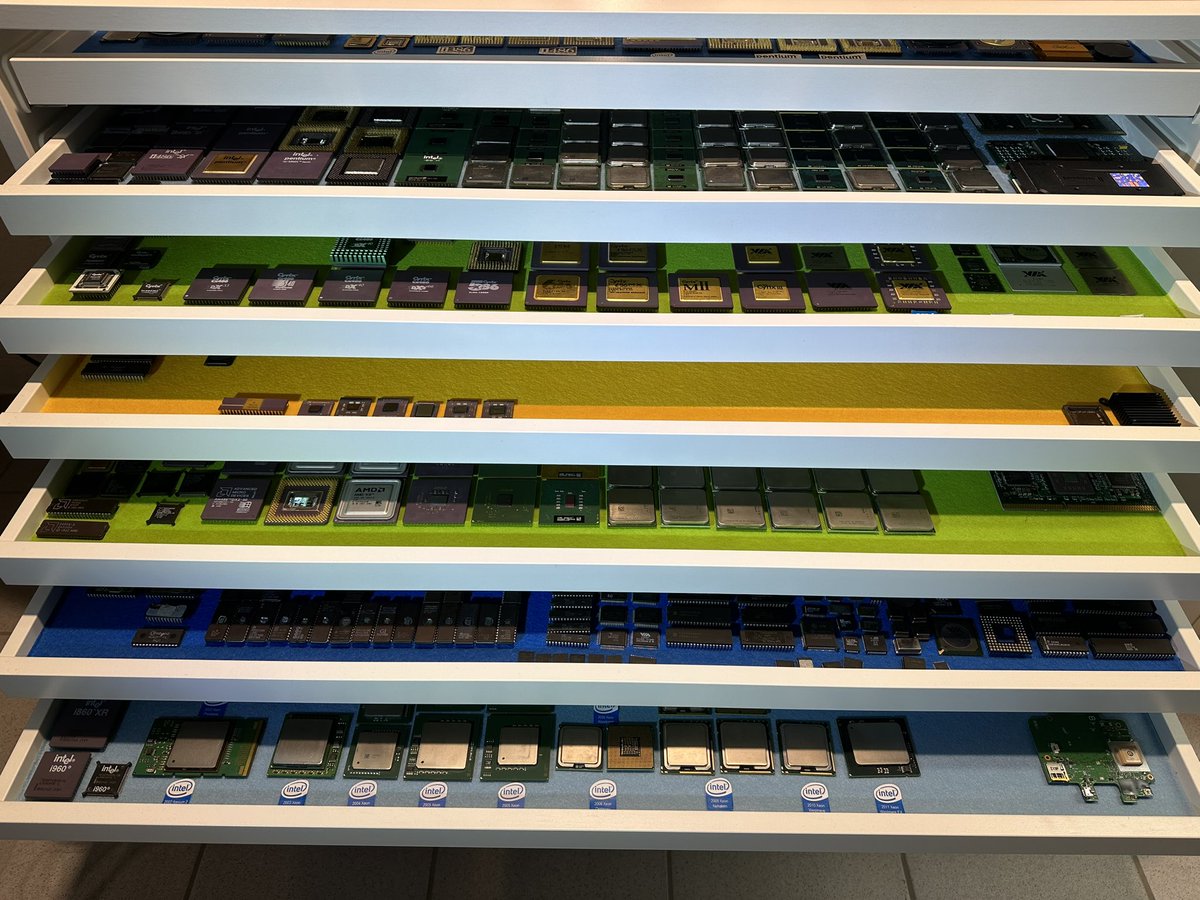

! The top drawer shows a random shiny collection of
#CPUs
visible always through the glass top. This is followed by 6 further drawers carrying
#2
Intel,
#3
Cyrix/IBM/TI,
#4
Motorola,
#5
AMD,
#6
various ICs,
#7
Intel Server CPUs. Now I have space again! 2/2
It’s a wrap! Late November I started a new project with the aim to rearrange my large
#CPU

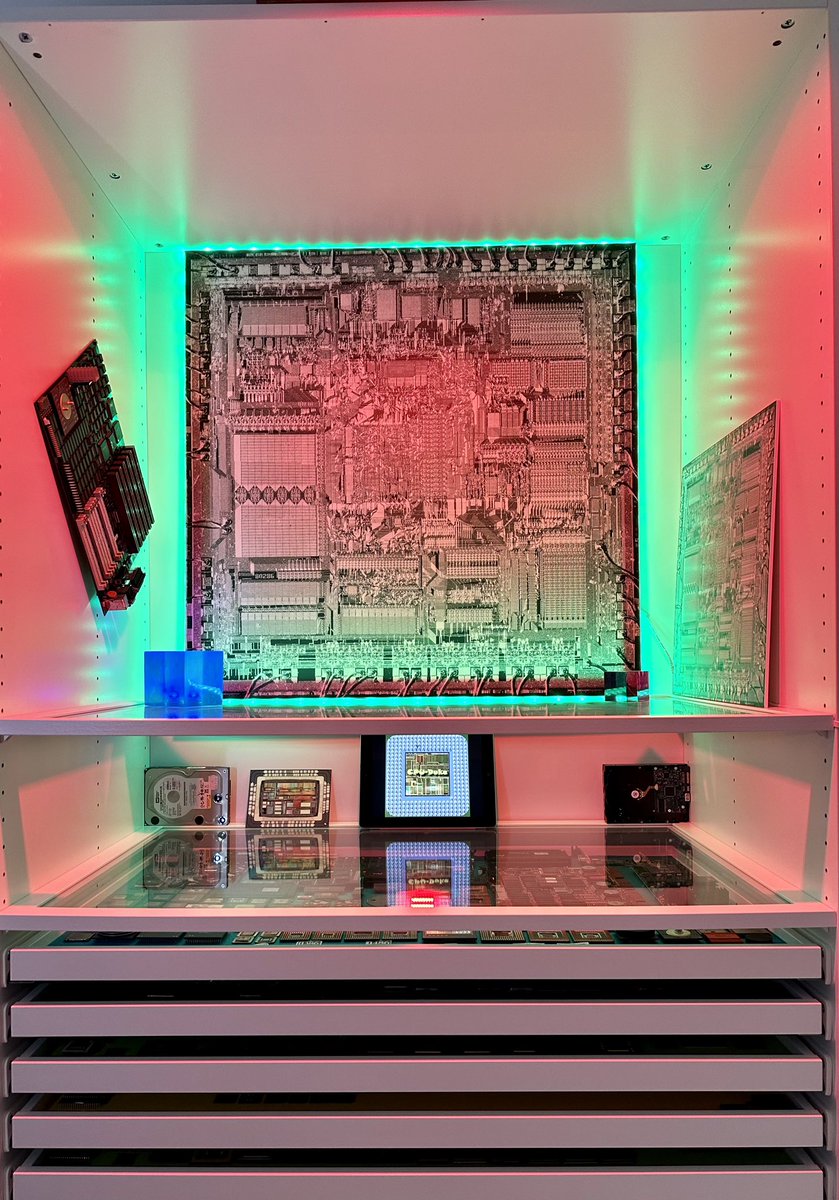

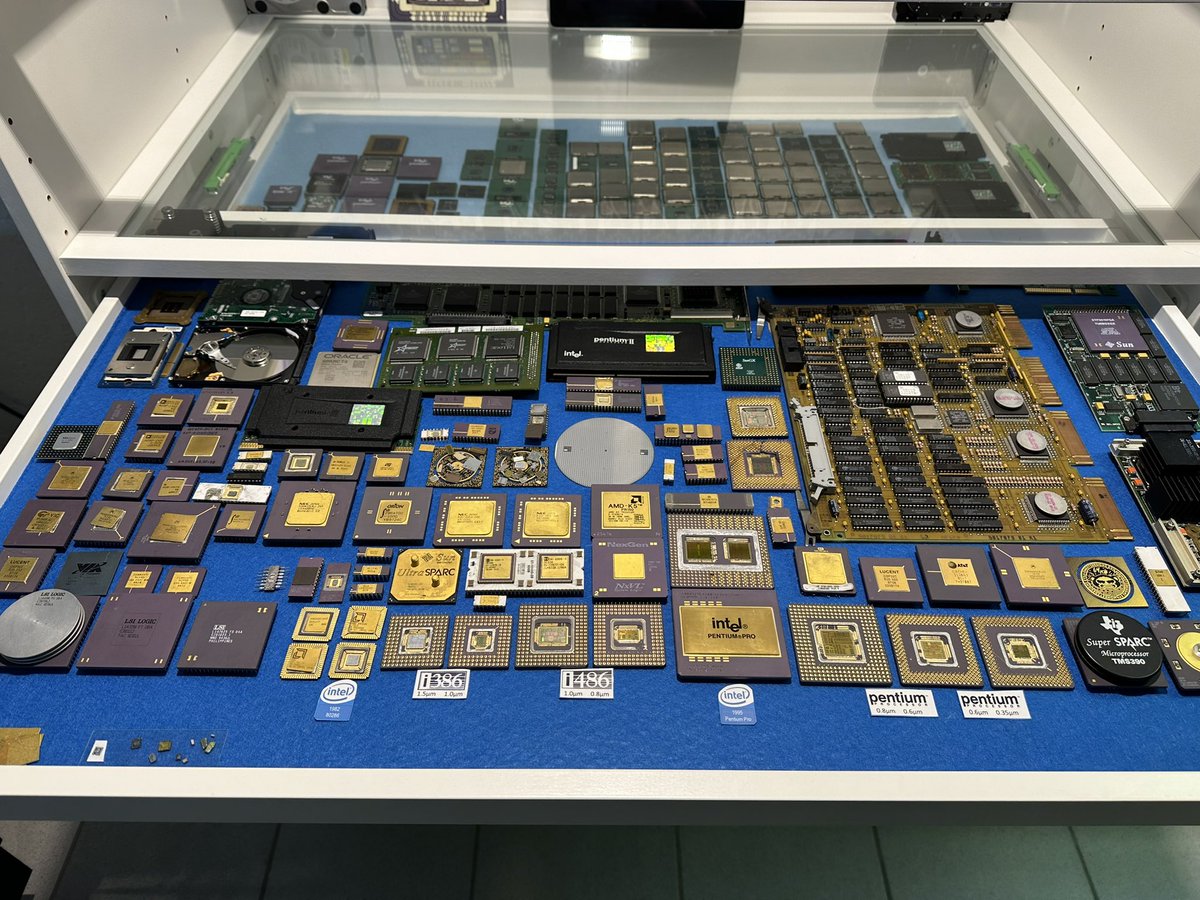

collection. I set up a cupboard with several drawers to now display the
#CPU
collection
#horizontally
. I still use my wooden cases for vertically exhibiting some chips. 1/2
In the mid 90s, I started
#collecting
#CPUs
and crafted my own wooden case to sort and display them. Over time, I needed a second and larger one. Today, I have more than 1000
#microprocessors
and I hence started a new project to manage this new era. Stay tuned for the result!
It’s a 🐖 with ❤️! I was not aware of DRAM chips being a place to hide a
#silicondoodle
, but for whatever reason, a heart-perforated
#pig
is walking on this IC made by Taiwanese memory giant
#NanyaTechnologies
. Anyone has a theory’s why?
It’s a
#DX4
!
30 years ago, on March 7th 1994,
#Intel
launched its flagship 80486! The i486DX4-100 was a fourth-generation x86 microprocessor. This chip, which is based on the 80486 microarchitecture, had a clock multiplier of x2, x2.5, and x3 with a max operating frequency of 100
It´s an 8080!
I did not dare decapping the original Intel 8080 but some time ago, I opened a NEC version - the D8080AF from 1976. How do you like the macro shot?
Fujitsu MB86904 - a 32 bit microSPARC II core RISC processor from the mid 1990s. Produced with 0.5 micron CMOS 3L technology and 2.3 million transistors.
It’s an elephant! This
#vintage
#DRAM
produced by ZMD in the late 1980s shows a beautiful
#silicondoodle
just above the
#chip
’s designation. The U2164 has a 16kbit storage depth and my theory is that this memory feature is the reason for the 🐘. After all, an 🐘 never forgets!
The
#HP
(Hewlett-Packard)
#PA
(Precision Architecture)
#RISC
(Reduced Instruction Set Computer)
#RISC
#chip
7300LC (Low Cost) is my first real multi-doodle
#processor
and I thought it deserves a different presentation...enjoy!
It´s an 8080!
I did not dare decapping the original Intel 8080 but some time ago, I opened a NEC version - the D8080AF from 1976. How do you like the macro shot?
3500 followers on Twitter! Thank you! I would like to celebrate this milestone with you by delidding the famous
#Motorola
68000! The
#68K
was introduced in 1979 and was originally produced using a 3500nm CMOS technology. Enjoy Valentine´s Day!
It’s a lost duck family! Oh no, a mother 🦆 with her ducklings was separated from their father 🦆 on this
#chip
made by
#Siemens
. I had discovered the male
#duck
before but only thorough cleaning of the
#silicon
#die
revealed the rest of the family. Cute
#silicondoodle
! 🦆
It´s a
#Philips
(again)! This multi-
#silicondoodle
#chip
deserved a special shot: stitched
#microscopy
photographs with an overlay of all doodles on the die - the owl family, the crest of the city Hamburg, the 2 Philips logos, the designer´s special markings, and a macro shot!
It’s an Organigram! The
#vintage
#AnalogDevices
ADSP-2100 has no
#silicondoodle
but the development team left some clues how the
#chip
was designed, who was involved and how the work flow process was organised. Fascinating!
It’s a
#Smurf
!
#silicondoodles
-so the urban myth- were placed to proof counterfeiting in front of court.
This
#chip
tries to claim
#copyright
by using a
#trademark
protected figure like the Smurf pulling a wagon with the copyright logo!
Insane? Paradox? Funny?
Welcome to the
It’s a vintage phone! The
#chip
was produced in the early 90s by ZMD and the designers were placing a vintage 📞 from the 1950s as
#silicondoodle
on the
#silicon
#die
. The U1001 is a Filter IC allowing analog to digital conversion of phone signals…
#Cyrix
’s technological masterpiece, the
#5x86
#microprocessor
, hides an awesome
#silicondoodle
: a
#chili
pepper. Why? Although this
#CPU
is code named M1sc or M9 the designers unofficially called this project “Chili”. 2 million transistors fabricated with 650 nm tech!
It’s patented! The
#Dallas
DS1685 real time clock module has no
#silicondoodle
but instead tells the reverse engineer directly which patents to read in order to progress faster! Remember that doodles were used in counterfeiting before the Trademark Counterfeiting Act of 1984…
Last week, I reached the milestone of
#2000
followers on Twitter! Thank You!
Let us celebrate together with a decapping of a
#vintage
#CPU
that used
#2000
kHz clock speed: the famous 8080 introduced in 1974. This version is from NEC with a date code January 1983...enjoy!
It’s a dinosaur! This VR-glasses wearing
#Velociraptor
is lurking between the transistors of the
#HP
PA RISC 7300LC. HP is known for its
#silicondoodle
‘sunken via technique’ where small ‘pixels’ are created (vias) which are finally filled with metal to create the image. Crazy!
It’s a TV! This
#Siemens
#IC
is a Picture-in-Picture chip and it combines two picture sources so that a small moving picture (inset) can be superimposed in a moving picture with normal size (parent). Not really vintage but did anyone ever used PiP really? 📺
#Intel
´s famous 286
#CPU
#die
stitched from 150 individual
#microscopy
pictures using a simple light microscope (where bond wires are really golden). Even without any
#silicondoodle
, the 134,000 transistors produced at 1500 nm technology are magical.
#CPUDuke
Another
#Philips
#TV
#Chip
.📺
I love those multi-
#silicondoodle
#ICs
...
The TDA4661 is an integrated baseband delay line circuit used with TV decoders.
The
#Hamburg
city crest is on the left (where the Philips factory was) and the
#owls
have some designer´s initials...
It’s a transputer! With
#CPUs
reaching fast their limits in the 1980s,
#INMOS
was following the idea of parallel computing to increase performance.
#transputer
stems from transistor & computer, where computers would be up numbered as were transistors before to reach scale…
It’s a wrap! Late November I started a new project with the aim to rearrange my large
#CPU
collection. I set up a cupboard with several drawers to now display the
#CPU
collection
#horizontally
. I still use my wooden cases for vertically exhibiting some chips. 1/2
In the mid 90s, I started
#collecting
#CPUs
and crafted my own wooden case to sort and display them. Over time, I needed a second and larger one. Today, I have more than 1000
#microprocessors
and I hence started a new project to manage this new era. Stay tuned for the result!
It’s
#Anubis
!
The jackal-headed ancient Egyptian god is watching over this mummified/metal layer protected die!
Anubis facilitates mummification, protects the burial chambers and decides whether or not one‘s soul should be granted eternal life!
If it would be up to me, I’d keep
It´s a
#R12000
!
In November 1998, so exactly 25 years ago to month, NEC Corporation introduced its MIPS R12000. The VR12K operated with a 64-bit RISC design, 64kB L1 cache and more than 7 million transistors produced @ 250 nm.
The CPU was used in NEC supercomputers and several
It’s
#TIM
!?…
…The famous
#SID
#C64
sound chip produced by
#MOS
…I was trying to decap and image this 8 bit era milestone to provide large scale posters to the retro community, but a nasty epoxy layer got in my way. The 6581 was designed by Bob Yannes (B.Y.) but who is TIM????
It’s a
#OneChipTV
! This
#vintage
#IC
from
#Philips
is a single-chip TV processor containing nearly all small signal functions required for a color TV receiver. It also contains a nice
#silicondoodle
. Funny that they made the dots between the T.V. ?📺 Have a nice Sunday!
It’s a Cypress! Not really a
#silicondoodle
but simply a nice company logo.
#Cypress
(now part of
#Infineon
) produced the VIC068A - a bus controller for VMEbus (Versa Module Eurocard) originally designed for the
#68000
#processor
family. A
#chip
from the early 90s!
It’s a sharptooth+!
Since years I am trying to get my fingers on the high-end
#AMD
K6-III+, code named sharptooth. Both the K6-III and K6-III+ have 64kB L1 and full speed 256kB L2 cache onboard. The main difference is the reduced node from 250nm to 180nm enabling >500MHz & <2.2V.
Happy New Year 2023!🥳
You already opened and enjoyed your sparkling wine or even Champagne?🎉🍾🍷
Well opening bottles is rather easy, but what about
#decapping
#chips
? Have a look yourself how I opened two dozens of chips in this Decapping
#Medley
!
It’s
#EarthDay
! 🌼
In the silicon world, there are many doodles representing plants 🌱, like the Lattice logo with a forest 🌲, the ITT fir tree, or the Cypress 🌳 logo.
Yesterday, I decapped an old friend, the AMD 386SX/SXL-33, long in my collection, and finally I found the
#AMD
‘s 486 DX2 at 700nm vs. DX4 at 350nm.
In the 90s, node reduction was enabling upclocking
#CPUs
of the same architecture which was AMD’s focus to low cost systems, while
#Intel
early developed new architectures like the
#Pentium
.
The pics show the real size difference.
Anyone still using an ISDN system? If yes, chances are high there is this
#AMD
#chip
installed! The designers left a
#silicondoodle
in one of the corners of the AM79C30
#microcontroller
- ring ring!
...one more thing! Before we head into the new year, there is still one anniversary in 2022 we need to celebrate. 40 years ago, in 1982,
#Intel
developed a special
#CPU
: The 80186. It is Intel´s first embedded processor with 16-bit data bus.
#Happy
#Birthday
80186.
🎉😀🎂
#CatchOfTheDay
!
Again on the flea market…and found a CP/M-86 microcomputer for a few Euros…all chips from 1984!
#vintage
#retro
This 40 years old RC 750 runs with a 8MHz Intel 80186, so 16bit, actually there are two installed…??? Anyone knows why?
While my
#silicondoodle
hunt is in full swing, I wanted to quickly comment on my setup. While my Bresser 20/40x microscope serves well for repairs, I use my Radical metallurgy microscope for close ups. Stitches give best results with pictures from my 24MP Sony Alpha 6000. Enjoy!
It’s a
#bunny
! There is gorgeous
#silicondoodle
on this
#Siemens
#IC
. The bunny resembles the
#Playboy
logo of
#ArthurPaul
created in 1953, but it has a bent ear, no bow tie, and a large grin on his face. I could not find the data sheet of this
#chip
but maybe its function has to
It’s a Power Man! The PSB 2120 is a
#Siemens
IRPC - ISDN Remote Power Controller - from 1989! The
#silicondoodle
shows a stick man with a large 💪! Vintage power from the 80s!
It’s a computer! Thanks to
#DallasSemiconductor
for reminding me of this most counterintuitive thought that according to the
#silicondoodle
on the
#die
of this
#vintage
#IC
, this
#chip
is actually a… computer product! I am happy that we could finally clarify this debate! 💻 🖥️
It’s a
#Chopper
!
The
#Intersil
(now
#Renesas
) ICL7650SCPD is a chopper-stabilized amplifier circuitry. The chopper amplifier achieves its low offset by comparing the inverting and non-inverting input voltages in a nulling amplifier, nulled by alternate clock phases. Only the SCPD
🎉1000 thanks to my 1000 followers!🎉
Let us
#celebrate
this milestone together with the delidding of a
#chip
that was one of the first to be produced with
#Intel
´s 1000nm CMOS IV technology: the 387DX.🎇
#FPU
#1
µmequals1000nm
#cpu
#funwithchips
It´s a flash! Next to the double Con Artists (representing two FPU units on the
#HP
1FQ2 3D Accelerator processor), a high voltage flash is placed as third
#silicondoodle
near the left lower corner of the
#die
. I love this one...
It’s
#teletext
! This
#vintage
IC from
#Siemens
shows a small
#silicondoodle
in the form of a TV set with some “text“.
The SDA5243 is a 40 pin computer-controlled teletext decoder from the nineties. Anyone remembers this TV function?
It´s a
#Pentium
!
#OnThisDay
, on March 22 1993, the Intel Pentium
#processor
was officially launched. This "80586" represents a unique milestone in the
#CPU
history. I will celebrate this special day and week with several Tweets and videos... join in!
It´s a
#Pentium
! Let´s decap those CPUs in order to have a clear view on the silicon die. As usual, I use my heatgun at 650°C to quickly remove the back lid. Just took minutes for this 75MHz P54C version...(4/14)
It’s a
#pink
#elephant
!
The
#ITT
4116 is a 16kBit DRAM from the 80s. The circuit was made in Germany and shows a cute
#silicondoodle
following the saying „memory as an elephant“ - similar to the
#Tesla
/
#ZMD
chip I posted last week…
#StitchOfTheDay
! This vintage
#chip
from
#Lattice
is a Generic Array Logic (
#GAL
). Lattice is one of the few survivors still producing field-programmable gate arrays (FPGAs) today. Enjoy the weekend!
It’s
#Calimero
!
The Austrian designers of this
#ASIC
must have loved the Italian Icon from the 1960s so much that they placed a Calimero
#Silicondoodle
. This RF transceiver IC is made by
#Infineon
and is one of various chips on the IPhone 4S PCB. 🥚 🐔
It’s Made In USA! I found this
#chip
from
#AMD
on a
#SPARC
motherboard. According to the data sheet, the Am29C660 is a CMOS Cascadable 32-bit Error Detection and Correction Circuit. The
#silicondoodle
makes its origin quiet clear: 🇺🇸!
It’s a set of
#Texas
#Longhorns
. Back in the mid 90s, those 486DX4 chips were the peak performer
#CPUs
until the
#Intel
Pentium was introduced.
#AMD
even pushed it to 120MHz with 0.35 micron. I never understood why these were actually called DX4 as the clock multiplier was 3!
It´s a
#Katmai
!
25 years ago
#tothisdate
,
#Intel
launched the third
#Pentium
#CPU
family introducing Katmai as slot 1 processor
@450
and 500MHz, produced at a 250nm node. The Pentium III Katmai was released in a SECC package with a L2 cache size of 512kB which was running only at
It’s a
#Turtle
!
The
#AnalogDevices
microprocessor ADSP-2111 belongs to the 21xx family of 16bit DSPs with on board memory featuring 25 MIPS…the
#silicondoodle
in the form of a turtle somehow reminds me of the teenage mutant ninja turtles…
#Cowabunga
!
It´s a
#R12000
!
In November 1998, so exactly 25 years ago to month, NEC Corporation introduced its MIPS R12000. The VR12K operated with a 64-bit RISC design, 64kB L1 cache and more than 7 million transistors produced @ 250 nm.
The CPU was used in NEC supercomputers and several
It’s a
#shark
!
There is a beast lurking on this Digital Signal Processor from
#AnalogDevices
. As this 120MFLOPs-50MIPS-32bit-DSP is code-named SHARC, it should not be surprising to find this cool
#silicondoodle
. SHARC Attac! 🦈
Welcoming the newbies of my
#CPU
collection -
#AMD
K5 SSA/5 versions with 75, 133 and 150 MHz.
Macroshot, picture prior to polishing, set picture and final destination in AMD collection.
#processor
#collection
It’s
#Ganesha
along with
#YinandYang
!
The
#Qualcomm
#chip
is full of
#silicondoodles
. I am not sure if there is a specific reason for the two doodles on this die, but Ganesha is obviously the Elefant-headed god in Hindu religion, and Yin and Yang is an important part of the
Enjoy this „live die surgery“ on the
#AnalogDevices
chip containing a nice
#silicondoodle
. It is unfortunately partially hidden by a wire and I had to surgically remove the 25 micron thick silver wire. The clip is 2 min long so do not miss out the end and the voice over!
Look what I saved from the scrap yard! It is the inside of the 2100 server station made in 1994 by
#Digital
. The server is based on
#DEC
’s Alpha AXP running at 190MHz (EV4). Huge motherboard with lots of expansion capabilities!
#RetroPC
#RAM
The most strange thing happens on this motherboard using those two different 60ns EDO 72 pin SIMM memory modules! The left pair (16MB 87MB/s) is faster than the right one (32MB, 58MB/s) but combining them brings a huge boost in all benchmarks (153MB/s). Why?
It’s a
#DRACO
! As promised I decapped another chip from
#Nanya
‘s 128MB memory stick to produce better pictures. This time I etched the polyamide layer more carefully… 🔥 🐉 Enjoy!
It’s a
#dragon
! The 128 Mb DDR memory stick made by
#Nanya
appears to be called ‚DRACO‘, so what could be more logical than placing a fire spitting dragon as
#silicondoodle
? Sorry for the bad picture quality, I was already rather lucky find the logo on this
#IC
(and I will try to
Some more pictures of the
#Philips
TDA4661: standard 16 pin DIP package, die macro shot, a functional layout of the chip, and a close up of the
#owl
family.
#silicondoodle
Another
#Philips
#TV
#Chip
.📺
I love those multi-
#silicondoodle
#ICs
...
The TDA4661 is an integrated baseband delay line circuit used with TV decoders.
The
#Hamburg
city crest is on the left (where the Philips factory was) and the
#owls
have some designer´s initials...
#RetroPC
#Soundblaster
Back in the days of my adolescence, I was craving for good sound playing
#adventure
PC games and alike.
I eventually went for a SoundBlaster 16 with wave extensions. Today, 3 decades later, I bought 3 generations for my
#RetroPC
. Which one would you use?
It´s a wrap! Thanks a lot to all for watching and reading my tweets in 2022!
Merry Christmas, Season´s Greeting and a Happy New Year to you all! 🎅🏼
🎄Please enjoy my
#silicondoodle
#Medley
2022 and watch out for my new posts coming along.
CPU Duke
It’s an
#owl
! 🦉
This vintage
#chip
made by
#Qualcomm
is used in digital communication applications and the die is full of interesting
#silicondoodles
. The most majestic one is this large owl sitting on a branch - a really nice doodle! 🦉 not sure though what the sentence is
#ShowMeTheMoney
!
#Qualcomm
QFE1100, the world‘s first envelope tracking IC for 3G/4G. The chip was installed as power IC in
#Apple
‘s IPhone 6S saving up to 20-30% battery utilisation.🪫 And yes, saving power is saving money!
It´s
#DOOM
!
30 years ago to this date, DOOM was released.🎂👿
As a tribute to this anniversary, I started two weeks ago the challenge to revive a 30 years old PC from the flea market to play DOOM exactly the way it was done in 1993.
#Happy
#Birthday
!
The PC is a
#SiemensNixdorf
What the duck? As I am always referring to a ‘hunt’ when twittering about the search for
#silicondoodles
, this week’s hunting theme became obvious: it’s duck season! The Siemens 8bit microcontroller is from the late 80’s, and I have no clue why the duck is placed there! You?
It’s a
#Lotus
flower! This tiny Asian floral ornament is to be found on the
#vintage
IC made by
#Intersil
. The CerDIP package of the IM7008 was produced in Singapore in early 1978 and the chip was originally designed in (c) 1976. It took the
#silicondoodle
flower 45 years to see
It´s a Precision Circuit! This vintage IC DS1486 from
#DallasSemi
is a time controlling circuit from the 90s
- category "RAMified Watchdog Timekeepers". A nice logo, a cute
#silicondoodle
#texas
map and a descriptive tagline!
It’s a
#Guitarosaurus
! 🎸 🦖
A guitar-strumming T-Rex (the R12000‘s code name) is rocking on the stage of this silicon die. Next to the
#SGI
logo, there is also a Californian license plate showing the ID of the chip. The
#Silicondoodles
are absolutely fabulous on this processor
It’s an
#AMD
#Athlon
Argon!
Remember the first processors that came along with their own PCB aka cartridge due to the
#L2
cache? It took the industry only a few years to bring it back to a single die.
Anyway, this was my first attempt to decap a more modern flip chip CPU from
It’s
#Groucho
!
The cartoon of one of the famous Marx Brothers was placed as
#Silicondoodle
on the
#NEC
VR12K. Maybe the mask designers just wanted to put a „mask“ on the silicon
#die
? The arrows shows where to find the doodle…
It’s
#Anubis
!
The jackal-headed ancient Egyptian god is watching over this mummified/metal layer protected die!
Anubis facilitates mummification, protects the burial chambers and decides whether or not one‘s soul should be granted eternal life!
If it would be up to me, I’d keep
It´s a
#Katmai
!
you ever wondered if the
#holograms
stickers which are placed on the Pentium III SECC packages really represent the actual
#silicon
#die
?
I had a closer look comparing
@FritzchensFritz
fantastic die shots with a macro photography of the sticker...
The red areas
It’s a
#Katmai
!
Related to the 25th birthday of
#Intel
’s Katmai
#CPU
core, I started the making of a dedicated Pentium III video. I hope to get it done by the weekend!
It‘s a cow! An amazingly detailed
#silicondoodle
is located on the digital signal processor ADSP-2101 from
#AnalogDevices
. Next to the eyes, spots, dairy udder and the stamp burn, I love that the designers chose green as the background. Let the cow grass on this silicon meadows!
